Pump-Gas

JBY miniature diaphragm pumps use a DC motor to drive ru abber diaphragm through an eccentric wheel. The life of these small air pumps depends mainly on the type of motor used. Due to their compact size and light weight, these small vacuum pumps are ideal for portable devices such as medical devices/diagnostics, analytical and gas analyzers.

Some DC voltage pumps offer pulse width modulation (PWM) options. This unique feature is ideal for applications that require precise control of the pump output.

Features

Application

● Small size, light weight
● Long life, continuous operation
● Ozone sounder
● Air sampling
● Sphygmomanometers

● Carbon dioxide detection
● Air cushion wound drainage
● Low noise, low vibration
● 100% oil-free
● Maintenance-free

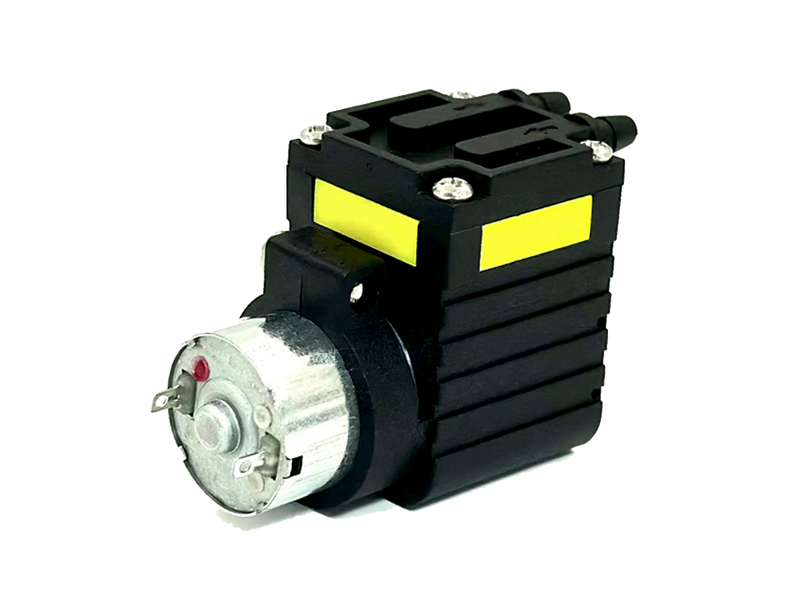

JBY-AY series

JBY-AY series miniature diaphragm pumps use DC motors to drive rubber diaphragms through eccentric wheels. It is to control the inlet and outlet of the diaphragm, form a power drive after the transmission mechanism to promote the reciprocating movement of the piston, and push the diaphragm back and forth through the air pressure to do work to inhale and remove gas. Flow rate：3.0~5.5 L/min Pressure：0.1~0.2 mpa Vacuum：-0.06~-0.08 mpa

Lear more >

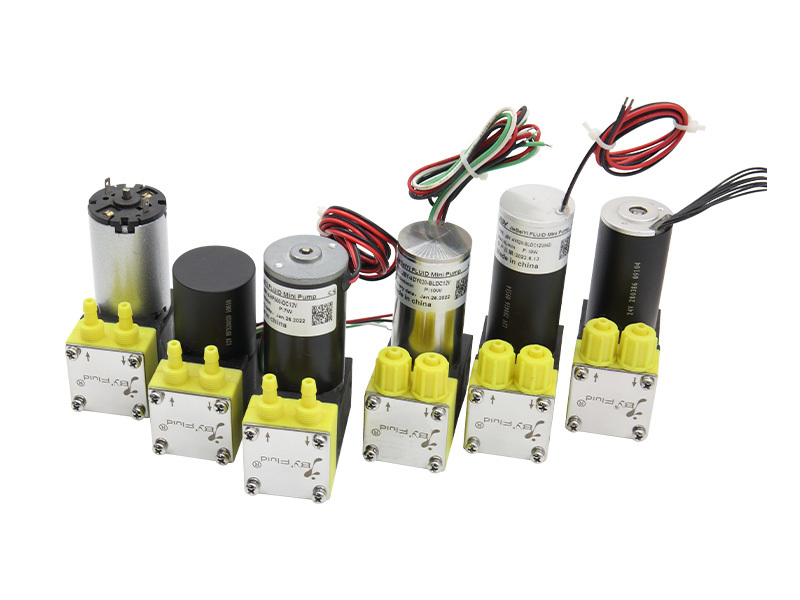

JBY-D1 series

JBY-D1 Series Micro Vacuum Pumps offer a full range of small, reliable OEM air pumps. These types of pumps are also known as air diaphragm pumps and gas diaphragm pumps, we offer durable pumps designed for many different industry applications, our pumps have been tested in the real world and can be used for 10,000 to 25,000 hours depending on the model and application selected, most pumps are equipped with AC or DC motors, but you can choose to customize our air pumps according to your specific requirements, due to the compact size and light weight, which Some small air pumps are suitable for small portable devices of medical and analytical instruments. Small vacuum pumps can be used in pressure or vacuum modes. These maintenance-free miniature air pumps feature low pulsation, no leaks and can be installed in any position. A wide range of motor options, such as brushed, brushless and coreless DC motors, can be used to customize. Flow Rate：6~10 L/min Vacuum：-0.06~-0.085mpa
